Инсталация с подово и стенно лъчисто отоплителна система в едно-фамилна сграда

Продукт	InstalSystem 5
Вид статия	ПРИМЕРНИ ПРОЕКТИ
Актуално съдържание за версия	IS 5.0 Beta 16.1

Project description

Пример илюстриращ лъчиста отоплителна инсталация със стенно и подово отоплителни системи, разположени в двуетажна сграда без сутерен.

SAMPLE PROJECT IN INSTALSYSTEM

Project files How to calculate downloaded file?	Installation with underfloor and wall radiant heating system in single family building, isproj
Designed with	InstalSystem 5 Rev. Beta 16.1.
Required modules	Основен модул Отоплителни системи Лъчисти системи
Project range	Radiant heating
Used catalogues	Basic radiant systems Brass and steel pipe couplings and fittings Copper pipes and fittings EN 1057 Miscellaneous fittings of any make Standard insulation catalogue Neutral valves catalogue-typical construction
Type of building	single-family building with no basement 2-storey

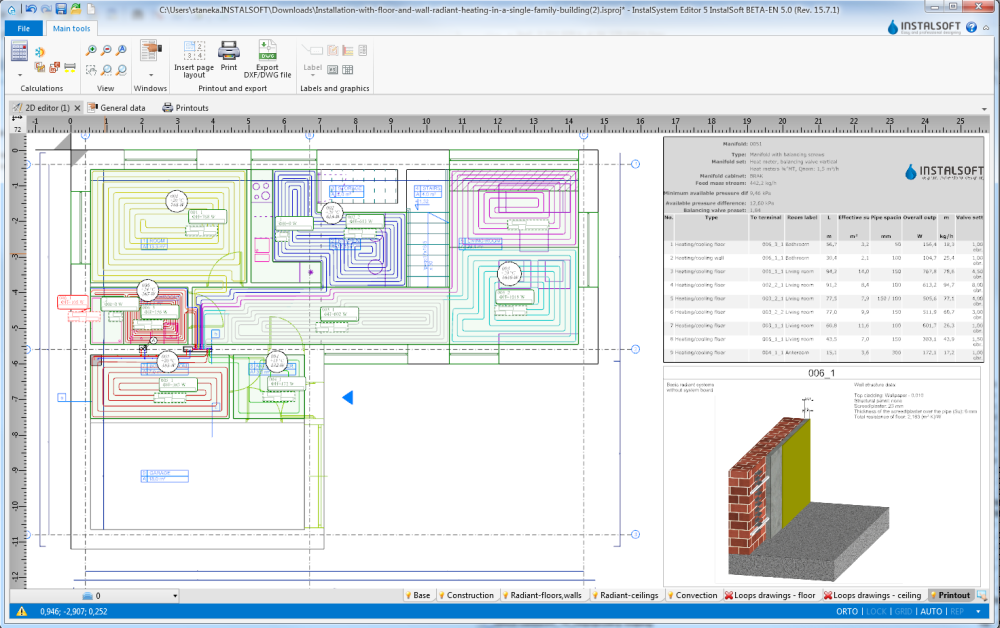

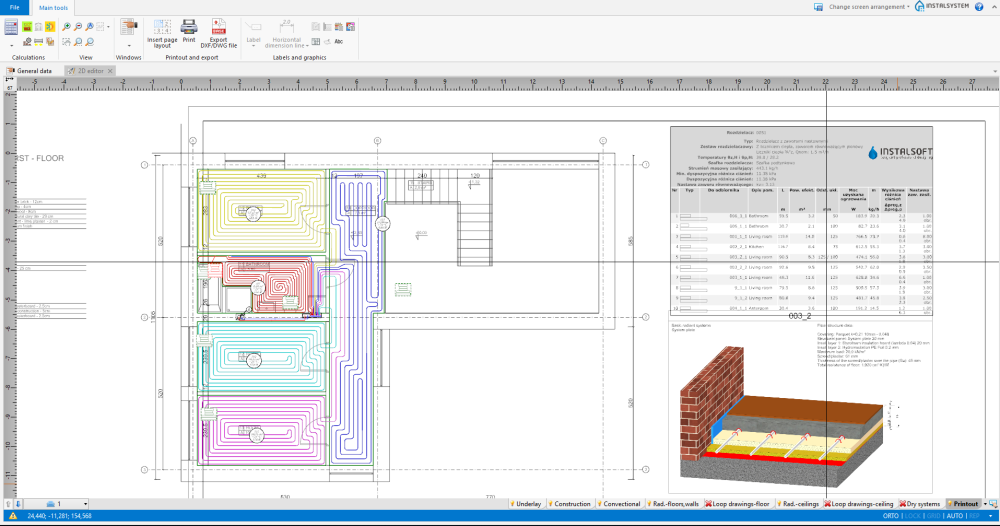

Building structure	Base ground floor, dwg Base first floor, dwg
Drawings range	Plan view
Prepared by	www.instalsoft.com
Legal disclaimer	The whole file or parts of the project may be copied
Calculation results	Full printout, xls Full printout, pdf General heating results, pdf Bill components, pdf Installation parameters, pdf
Drawing results	Ground floor, dwg First floor, dwg Ground floor, pdf First floor, pdf [{{{drawing_result5}}} {{{drawing_title5}}}] [{{{drawing_result6}}} {{{drawing_title6}}}]
