Проектиране на сключена водоснабдителна инсталация

Продукт	InstalSystem 5
Вид статия	Софтуерни приложения
Актуално съдържание за версия	GOLD Rev. 15.3

Обхват на урока

Този урок показва как да създадете сключена водоснабдителна инсталация. Последната е разположена в еднофамилна двуетажна сграда със сутерен.

Modules and program configuration

• InstalSystem 5 software package with the following modules:
  • Питейни-битови водни системи
  • Tap water extensions
• Recommended: sanitary system pipe catalogues containing direct U-shaped tap water connection, which guarantees lack of no-flow zones within the system

SAMPLE PROJECT IN INSTALSYSTEM

Project files How to calculate downloaded file?	Single-family building water installation initial state, isproj Water ring installation in a single-family building , isproj
Designed with	InstalSystem 5 Rev. 17.0
Required modules	Основен модул Питейни-битови водни системи Удължения на водопровода
Project range	Instalacje wodociągowe
Used catalogues	Steel pipes, medium, DIN 2440 PEX (pipes and fittings) acc. to EN ISO 15875 Brass and steel pipe couplings and fittings Standard water taps and whiteware Miscellaneous fittings of any make standard insulation catalogue Neutral valves catalogue - typical construction
Type of building	residential building with basement three-storey
Building structure	Underlay - all plans, dwg
Drawings range	Plan views
Prepared by	100px www.instalsoft.com
Legal disclaimer	Copying of entire project and of its fragments allowed
Calculation results	Tap water installation ring full printout, pdf Tap water installation ring bill components, pdf
Drawing results	All storeys, dwg Basement, pdf Groundfloor, pdf Attic, pdf

Initial state

The initial state file is located in the Project table, and it contains the building graphic structure and radiant sanitary system, which needs to be completed with a loop installation on the storey.
За повече информация, моля вижте: Design of water supply system installation

Steps to perform

Turning on the program and project general data configuration

1. Turn the program on.
2. Load the project file - Single-family building water installation initial state, isproj.

Installation edition

1. Select storey No. 1.

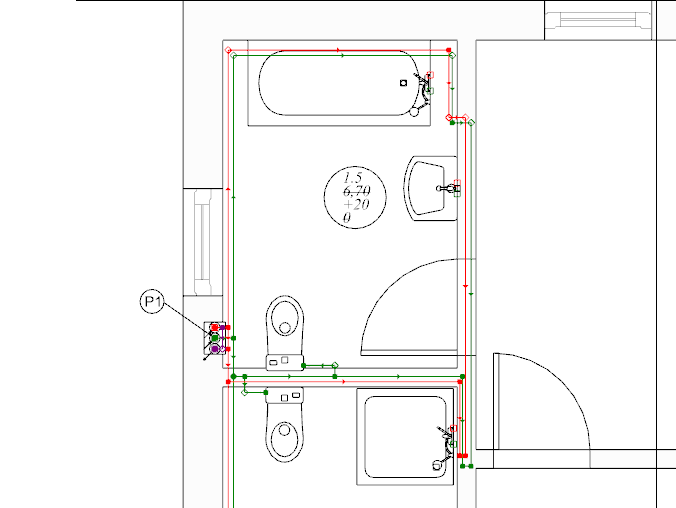

2. Draw hot and cold water pipe feeds, so that a loop installation is created in room 1.5.


   1.Creating a loop installation.


3. With your mouse, select the area with terminal units and choose Автоматично свързване на приемници.



4. If needed, modify pipe feed ordinates to evade doors. To do so, insert additional division points for the pipe feed passing through the door opening.
   it is necessary to impose a correct ordinate. The correction of imposed values should be verified in the 3D изглед window.



   2. Omitting the door opening

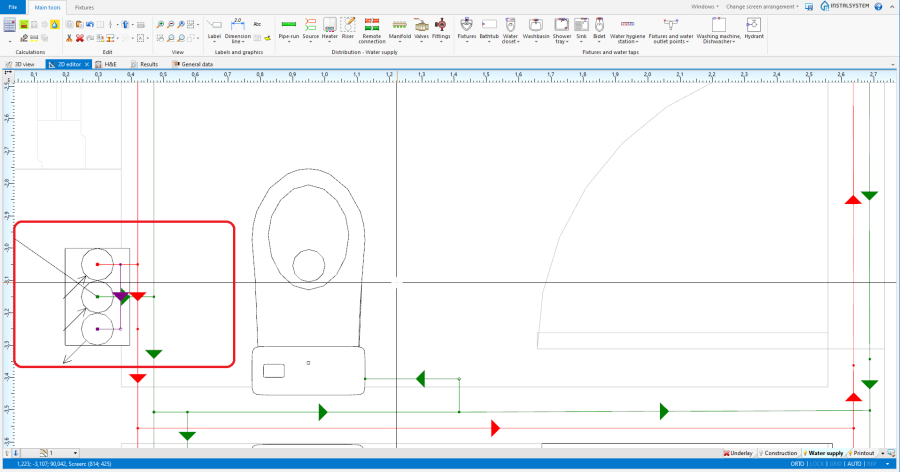

5. Verify if the circulation circuit has been closed properly on the storey.



   3. Closing the circulation circuit on the first storey



Verification of the correctness of installation structure

1. Verify correctness of the installation structure using the Провери връзки function (shortcut: Shift + F2).

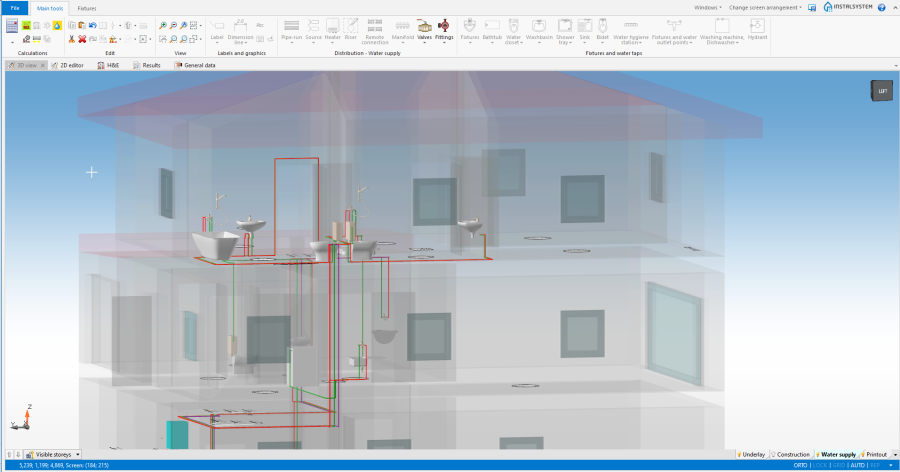

2. Verify correctness of the installation structure and find collisions using 3D изглед.
   За повече информация, моля вижте: Verification of the correctness of installation structure


Calculations and diagnostics

1. Perform Водоснабдителни инсталации by clicking on located in the Изчисления section of the Main tools toolbar.
2. Verify calculation results.

За повече информация, моля вижте: Calculations and diagnostics
