Внасяне на плочи в суха подови отоплителна система
Продукт | InstalSystem 5 |
Вид статия | FUNCTION AND TOOL |
Актуално съдържание за версия | IS 5.0 Beta Rev. 5.B1 |
Description
This functionality enables inserting Суха система плоча components to form a base for pipes in dry underfloor heating systems with guide plates.
Суха система плоча components can be arranged in any configuration and cut to fit the edge of the room, while the cut away pieces can still be used.
After completing calculations a Списък на елементи от лъчисто отопление is generated specifying the number of plates used in the project.

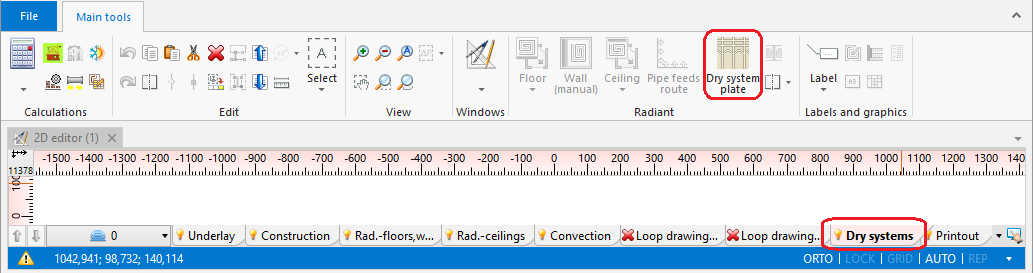

Location in the program
- Icon: Суха система плоча - available in the active scope of editing: Суха сис. (Главни ленти с инструменти tab, Лъчисто group)
- Additional dedicated tab with icons of plates with assigned types, depending on the configuration of the package.
Example of use

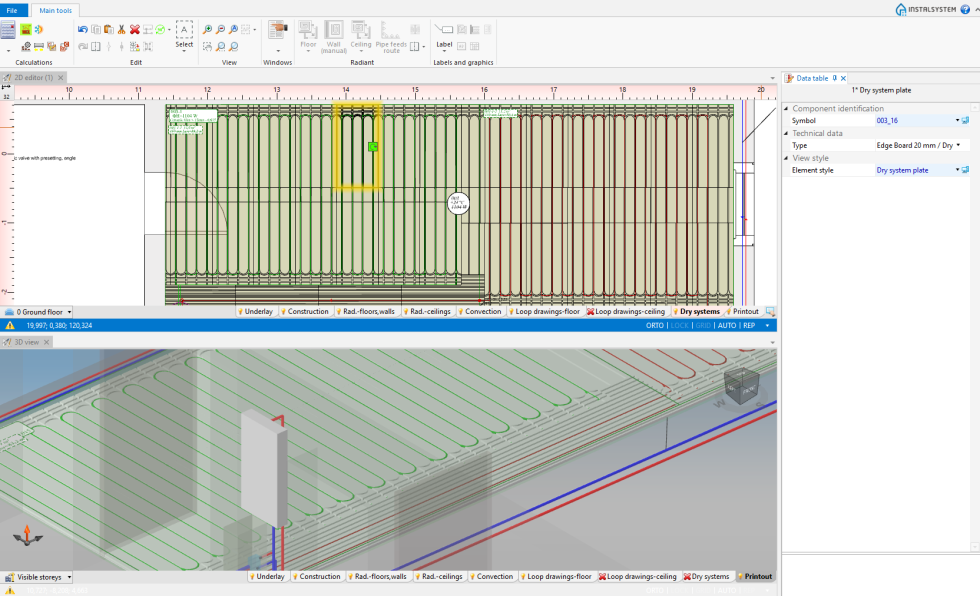

Manual inserting plates in dry floor heating system
- Суха система плоча is inserted within the Подова отоплителна/охладителна зона area.
За повече информация, моля вижте: Heating/cooling zone
Therefore this step has to be preceded by necessary design operations. За повече информация, моля вижте: Design of radiant heating floor and wall installation and selection in Общи данни in the Подови системи section of "Dry system" in the Система ЛО / тип закрепяне, по подразбиране field. - When inserting Суха система плоча appropriate catalog type should be selected in the Таблица с данни window, to take into account the pipe spacing distance determined or specified for the zone.
When the program configuration includes a dedicated toolbar it is possible to select an icon of a plate of defined type. - Inserting Суха система плоча components is supported by the АВТО mode, both with regard to room outline, as well as to the plates themselves. За повече информация, моля вижте: Additional information
- Using cut off pieces of Суха система плоча components.
The portion of Суха система плоча component being inserted that extends beyond Помещение or overlaps the Суха система плоча inserted before is automatically cut off. The cut off piece can be used in the project and the corresponding number of Суха система плоча components used is included in the bill of materials. The cut off pieces can be pasted outside of the drawing and reinserted elsewhere within the Подова отоплителна/охладителна зона cut to fit the edge provided that Изрежи and Постави functions are used.

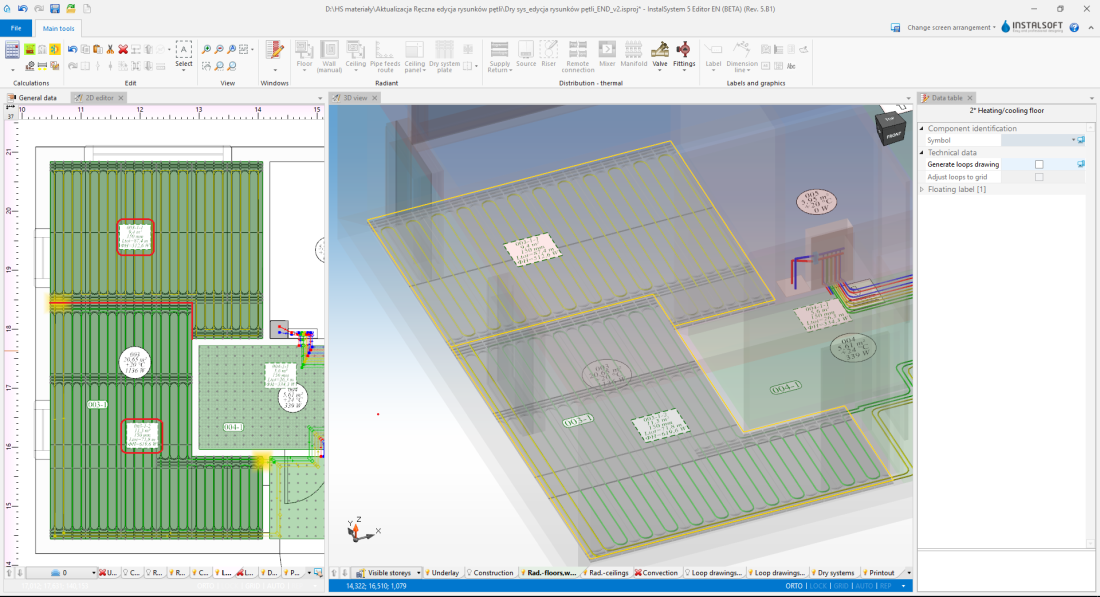

Adjusting the line dividing the Подова отоплителна/охладителна зона into Отоплителен/охладителен под components
- The lines dividing the Подова отоплителна/охладителна зона into Отоплителен/охладителен под components determined automatically may not match the edges of Суха система плоча components inserted manually. In order to match these the dividing line has to be adjusted.
За повече информация, моля вижте: Manual indication of the dividing line
За повече информация, моля вижте: Modifying the dividing line after automatic division
Inserting loop drawings
After proper arrangement of the dry system plates it is necessary to manually lay out the loops in accordance with За повече информация, моля вижте: Manual editing of loop drawings in dry systems with guide plates
Additional information
When inserting and copying/pasting a Суха система плоча component it is possible to switch between active edges/snap points:
TAB - cursor moves clockwise
Shift+TAB - cursor moves anticlockwise
- If an edge is active on a Суха система плоча component being inserted (cursor in the centre of the edge) - then 3 points are activated: 1 in the centre and 2 in corners.
- If individual points are active on a Суха система плоча component being inserted, the program switches between edge points of the component grid and snaps onto the grid points of other Суха система плоча components.
- Copying of several Суха система плоча components: the program switches between subsequent snap points of Суха система плоча components that make up the block being copied.
- Moving a Суха система плоча component: the active edge or point is selected based on the "grab" location of the component, and changing with the "Tab" key is disabled.
