Водоснабдителна инсталации в многофункционална сграда

Продукт	InstalSystem 5
Вид статия	ПРИМЕРНИ ПРОЕКТИ
Актуално съдържание за версия	2022-01-31

Описание на проекта

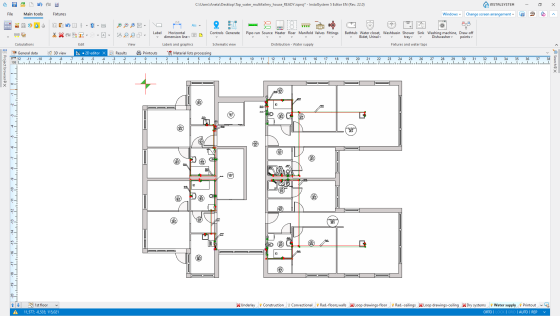

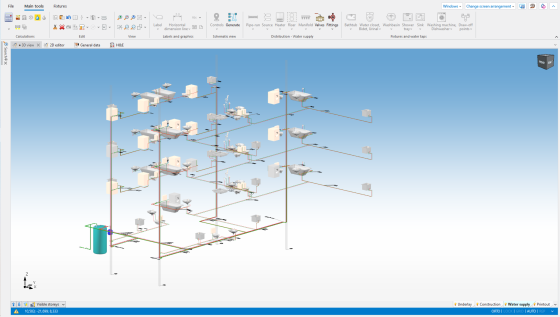

Проектът илюстрира пример за проектиране на водоснабдителна инсталация в многофункционална сграда.

•
•

Файлове за изтегляне и информация за проекта

Project files How to calculate downloaded file?	Water supply system in a multifunctional building, isproj
Designed with	InstalSystem 5 GOLD Rev. 22.0
Required modules	Основен модул Питейни-битови водни системи
Project range	Water supply system
Used catalogues	Steel pipes, medium, DIN 2440 PEX (pipes and fittings) acc. to EN ISO 15875 Brass and steel pipe couplings and fittings Standard water taps and whiteware Miscellaneous fittings of any make Standard insulation catalogue Neutral valves catalogue - typical construction
Type of building	multifunctional building with basement 5-storey
Building structure	Base drawing basement, dwg Base drawing ground floor, dwg Base drawing floor, dwg Base drawing attic, dwg
Drawings range	Plan view
Prepared by	www.instalsoft.com
Legal disclaimer	The whole file or parts of the project may be copied
Calculation results	Full printout, xls Full printout, pdf Bill components, pdf General water supply system results, pdf
Drawing results	Basement, dwg Ground floor, dwg First floor, dwg Schema, dwg Basement, Ground floor, 1st,2nd,3rd floor, pdf
