Геометрична корекция на стената
| Продукт | InstalSystem 5 |
| Вид статия | ФУНКЦИОНАЛНОСТИ |
| Актуално съдържание за версия | 2021-11-26 |
Description

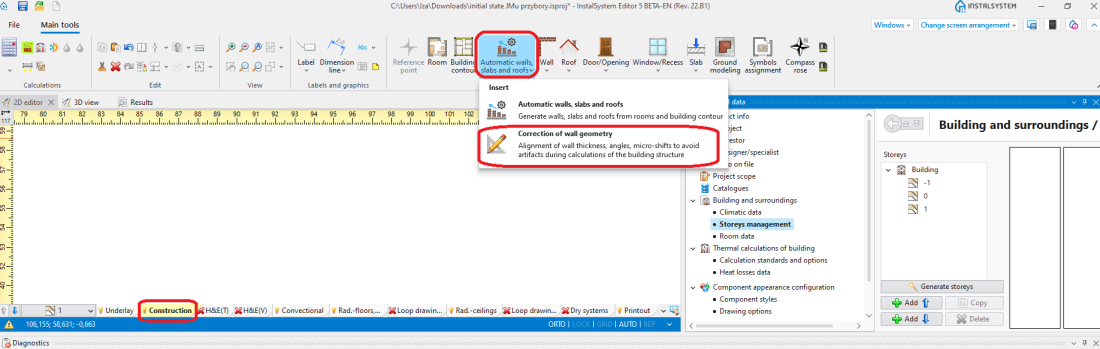

When creating a building structure (e.g. drawing rooms or walls) with the use of raster underlays the AUTO mode cannot be used. As a result of drawing inaccuracies, minute offsets are created between structural elements (e.g. walls) located on successive storeys. These may lead to improper interpretation of the building structure. In order to avoid difficult and time-consuming manual corrections to the structural model, a tool has been made available which automatically corrects the wall geometry. By using the Поправка на геометрия на стена function such artifacts can be eliminated and proper building structure can be obtained.
The Поправка на геометрия на стена tool can be used for the following purposes:
- Поправи стенни връзки - among other things to rectify wall connections if these were not made correctly with the Автоматични стени, плочи и покриви function
- Поправи дебелина на стена - to standardize wall thicknesses to specified thickness variants
- Поправи ъгли на стени - to fix the angles between connected walls
- Коригирай позиция м/у етажи - to align the positions of walls located one above the other on successive storeys
Examples of use
The Поправка на геометрия на стена tool has four options:
- Поправи стенни връзки
- Поправи дебелина на стена - enables specifying/removing a permissible wall thickness. The Поправи дебелина на стена tool standardizes the Дебелина [м] of a Стена to a defined value across the entire project.
- Поправи ъгли на стени - specifies the value of angle correction of a Стена. The Поправи ъгли на стени function modifies the value to a grid value, which by default is set to 3. The value is complemented to 90, 93, 96 and so on and adjusted accordingly. The angle shift does not depend on the position of the wall hotpoint.
- Коригирай позиция м/у етажи requires specifying the tolerance (in cm) of the mutual vertical misalignment of Стена type components. The storey with respect to which the alignment correction is to be made must also be indicated. ATTENTION! This function corrects the position of walls only, corrections in the area of horizontal slab partitions, if required, must be made manually.
