Description

In the InstalSystem software there is a possibility to select and edit multiple elements simultaneously.

Местоположение в програмата

Multiple elements can be selected with the use of various software tools, described below:

  1. Graphical editor (2D редактор and 3D изглед)
    • Selecting multiple elements one-by-one
      - while holding Ctrl button, click on individual elements with the left mouse button
    • Selecting multiple elements from given area
      - while holding left mouse button, drag the mouse cursor in order to specify selection area
      - perform a Избери елементи в правоъгълник operation, accessible:
      - in context menu, which is opened by clicking the righ mouse button anywhere in the graphical editor
      - on the Главни ленти с инструменти toolbar, section Редакция, after expanding Избери icon
    • Selecting all elements located in the given graphical editor and belonging to the active edditing scopes
      - use the Ctrl+A buttons combination
      - perform a Избери всичко operation, accessible on the Главни ленти с инструменти toolbar, section Редакция, after expanding Избери icon

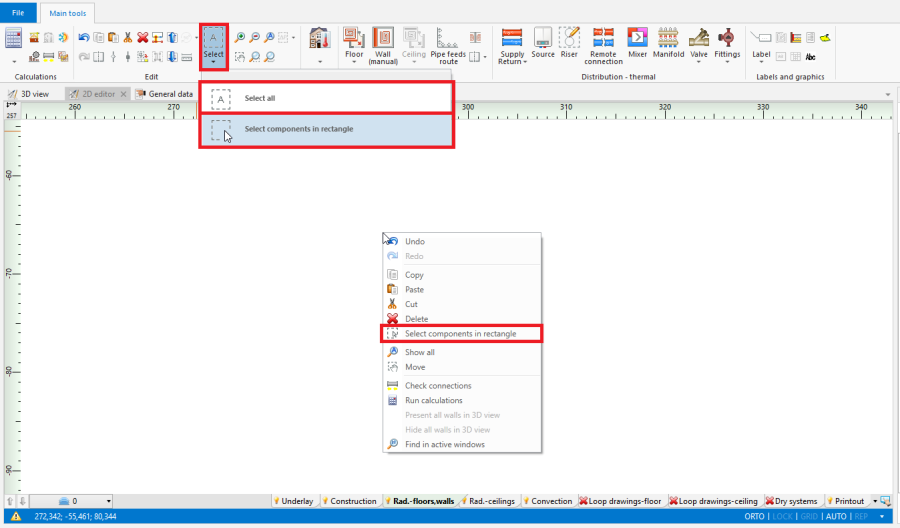

      1. Избери елементи в правоъгълник/Избери всичко
  2. Проектен браузър window, by selecting suitable Раздел (eg. Сградна конструкция, Отоплителна и охладителна инсталация), from a drop-down list located at the top of the window
    • Selecting only elements of defined type, which belong to a given window section
      - Избери в правоъгълник елементи от определен тип button located at the right side of each element type
      - Избери всичко button located at the right side of each element type

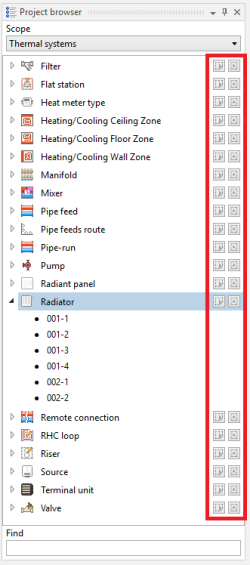

      2. Selecting elements of defined type in Проектен браузър window
  3. Търси window
    • Selecting only elements of defined type, which meet the additional selection criteria (possibilty to define own criteria)
      - Избери в правоъгълник елементи от определен тип button located at the right side of each element type
      - Избери всичко button located at the right side of each element type

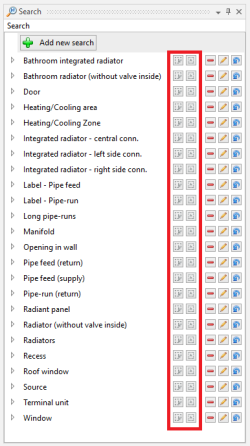

      3. Selecting elements meeting additional criteria in "Search" window
  4. Диагностики window
    • Highlighting all elements, for which a single, grouping diagnostic message was displayed
      - click left mouse button on diagnostic message
    • Selecting all elements, for which a single, grouping diagnostic message was displayed
      - double-click left mouse button on diagnostic message

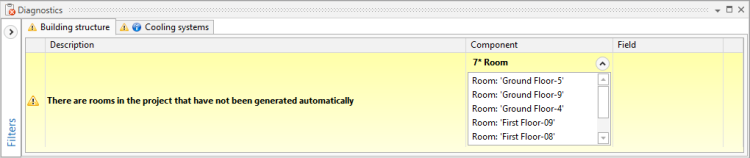

      4. Diagnostic message grouping many elements

    • Selecting all elements, for which a particular error has occured, in case of repeated diagnostic messages
      - click right mouse button on any of the repeated diagnostic messages and select a Маркирай всички елементи, където има наличие на грешка option from a contex manu

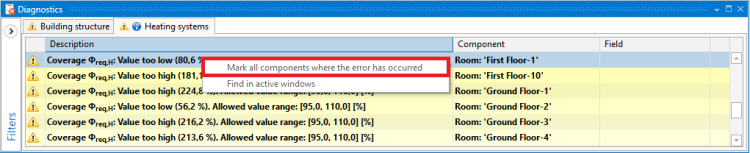

      5. Маркирай всички елементи, където има наличие на грешка function for repeated diagnostic messages

Example of use

Selecting return pipe-runs from a specified area, through a Търси window

Specifying additional selection criteria for pipe-runs and selecting all elements, which meet these criteria

Additional information

  1. Correction of the selection:
    • There is a possibility to deselect individual elements, by holding the Ctrl button and clicking the left mouse button on previously selected element
