Инсталация с лъчисто отопление по система Тихелман (с включен пример в урока)

Продукт	InstalSystem 5
Вид статия	ПРИМЕРНИ ПРОЕКТИ
Актуално съдържание за версия	2020-01-20

'

Project description

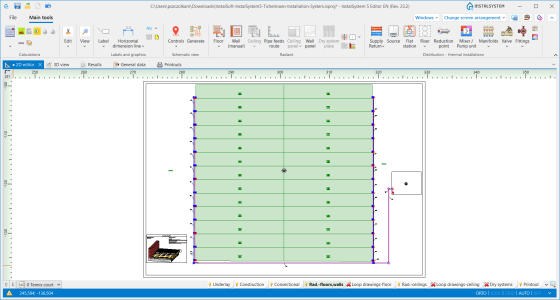

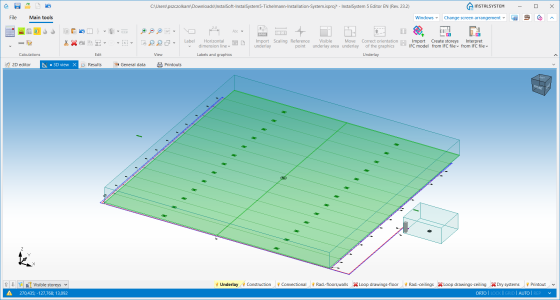

This article presents a project file of radiant heating installation in a Tichelmann system (without using manifolds) in public recreation and sports building.
The project is an example for the following lesson: Designing radiant heating systems with pipe-runs as distribution system. The lesson describes how to make such a project step by step.

•
•

Files to download and project information

Project files How to calculate downloaded file?	Initial state radiant heating Tichelmann system design Example of Tichelmann radiant heating system
Designed with	InstalSystem 5 rev Beta 30
Required modules	Основен модул Отоплителни системи Лъчисти системи
Project range	Radiant heating
Used catalogues	Basic radiant systems Brass, cast iron and steel fittings PEX pipes and fittings Miscellaneous fittings any manufacturer Standard insulation
Type of building	public recreation and sports facility no basement 1-storey
Building structure	Tennis courts, dwg
Drawings range	Plan view
Prepared by	www.kmr-pe.pl
Legal disclaimer	The whole file or parts of the project may be copied
Calculation results	Complete range of calculation results, xls Complete range of available printouts, pdf Radiant heating calculation results, pdf Bill of materials, pdf Installation parameters, pdf
Drawing results	Tennis courts, dwg Tennis courts, pdf
