Как да елиминирате: "Неправилен контур на сграда"?

Продукт	InstalSystem 5
Вид статия	TIP&TRICK
Актуално съдържание за версия	2021-04-30

Problem description

Problems are diagnosed by the program by means of message:

Неправилен контур на сграда.

The message informs that because:

• Контур на сграда and Помещение touch each other with contours,
• Контур на сграда and Помещение overlap with contours,
• Помещение touch each other with contours,
• Помещение overlap with surfaces,
• Помещение overlap with contours,
• Контур на сграда elements are placed one in the other.
• Контур на сграда overlap with contours.

Solution

• Change the shape or placement of elements Контур на сграда and\or Помещение' to eliminate the situations shown in the screenshots below.

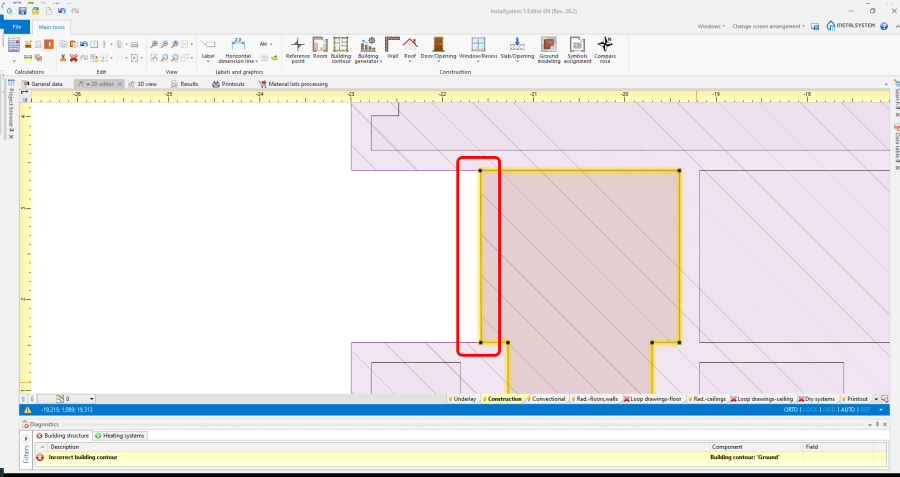

1. Контур на сграда and Помещение touch each other with contours

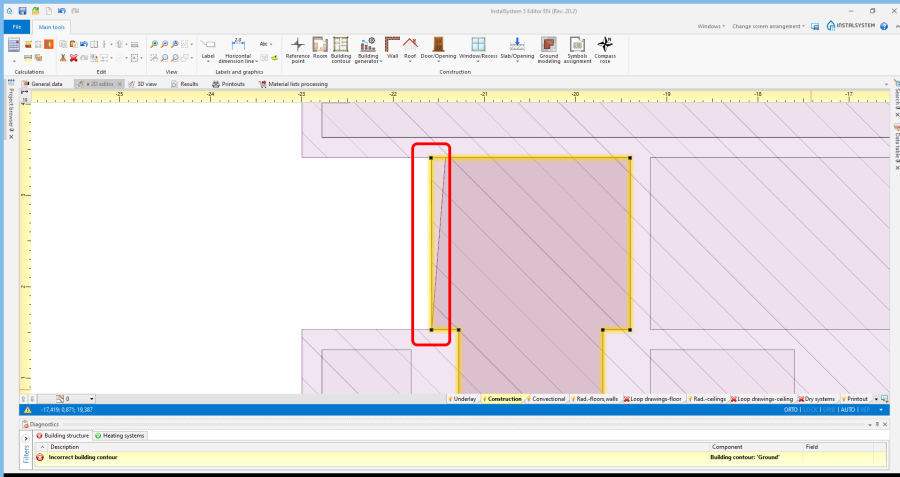

2. Контур на сграда and Помещение overlap with contours

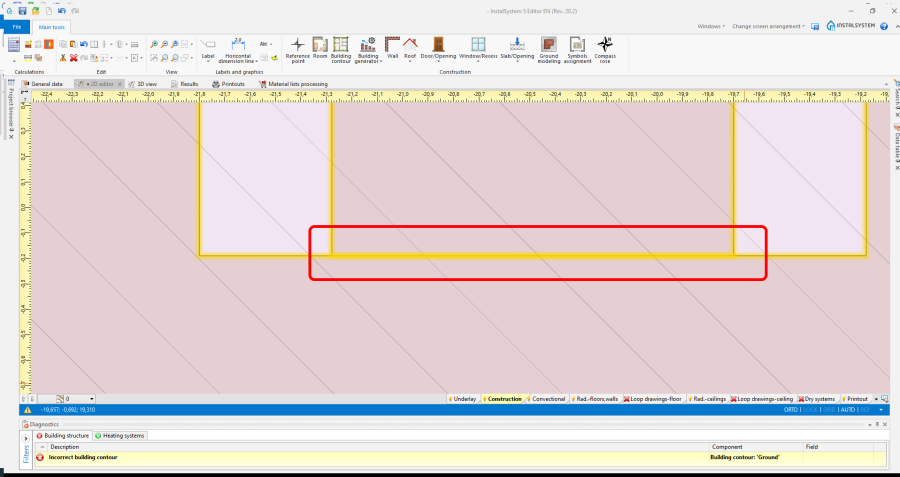

3. Помещение touch each other with contours

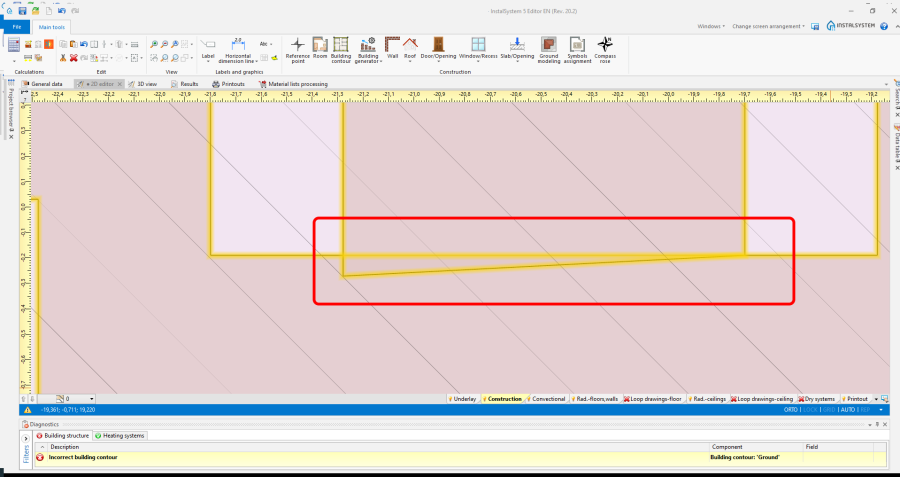

4. Помещение overlap with surfaces

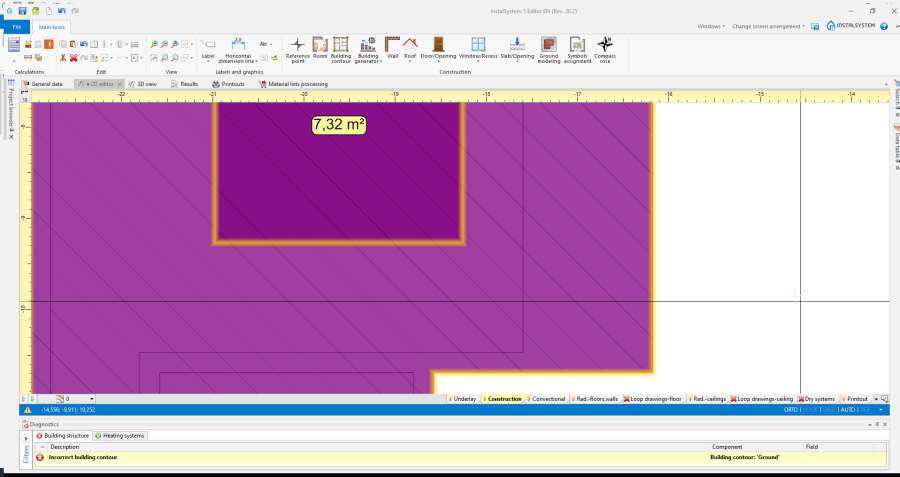

5. Помещение overlap with contours

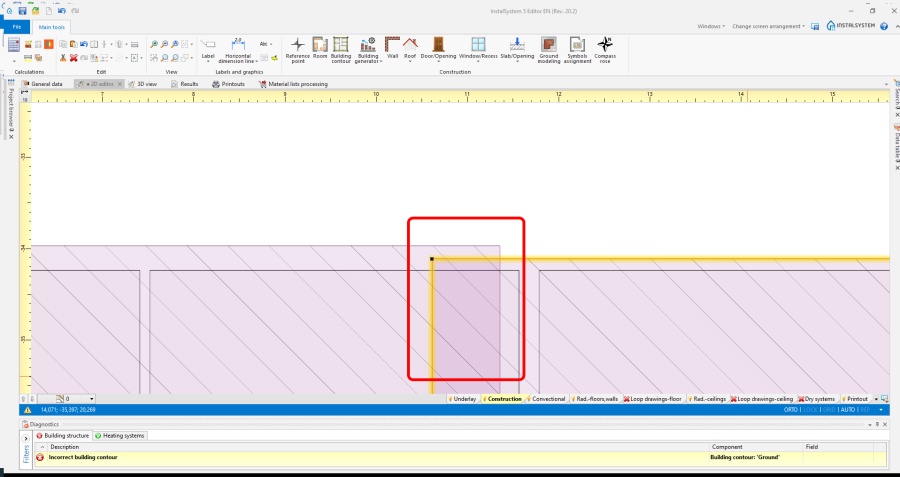

6. Контур на сграда elements are placed one in the other

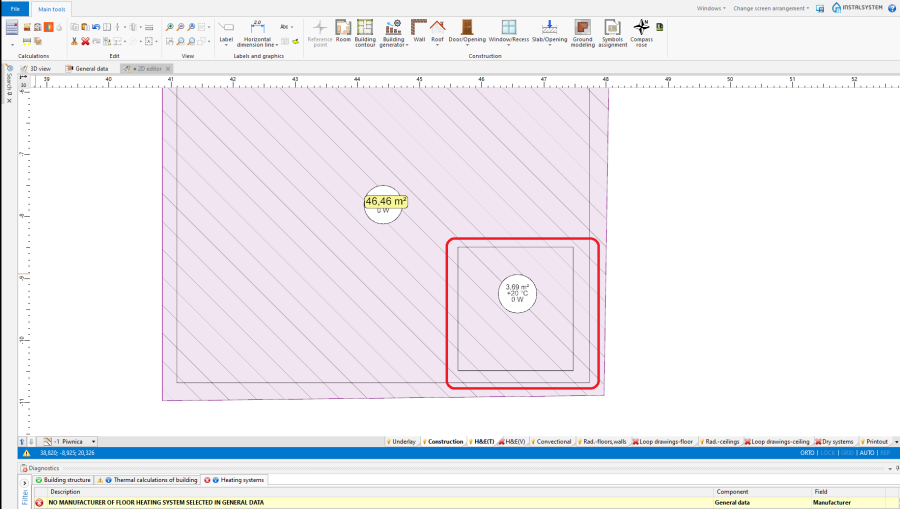

7. Контур на сграда overlap with contours
