Проблеми с приложението на компютри с интегрирана графична карта

Продукт	InstalSystem 5
Вид статия	TYPICAL PROBLEMS
Актуално съдържание за версия	GOLD Rev. 17.0

Problem description

Users working with InstalSystem 5 software on computers with one available or set as default integrated graphics card could encounter with problems related with general efficiency with program’s stability and with reduced work ergonomy.
The most common symptoms of this type of problems are:

• Application suspension/turn off in the moment of switch the 3D изглед,
• Black screen appearance in the 3D изглед or 2D редактор.

Actual hardware requirements are placed in the article Technical specifications of InstalSystem 5 package.

Solution

Regular graphic card driver update is recommended, despite the solution given below.

Computers equipped with the integrated and not integrated graphics card

To find out which graphic cards are installed in the computer, please use the information described in Настройки:

1. Start the program, choose tab Файл placed in the top left corner, then please choose the Настройки.
2. On the screened setting window, please choose Изглед на екрана.

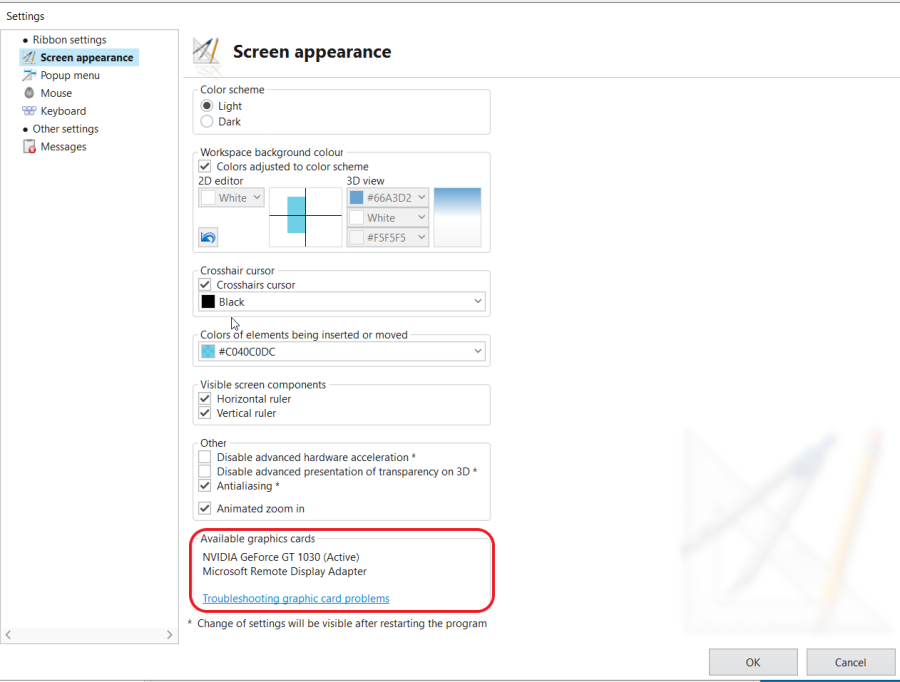

   1. Налични графични карти



Global inclusion of not integrated graphic card

This way turns off the auto-managing mechanism of the group installed graphic cards, could influence the set in Windows system energy management schemes and reduce the work time in laptop’s batteries.

• Example of changes in nVidia graphic card driver.

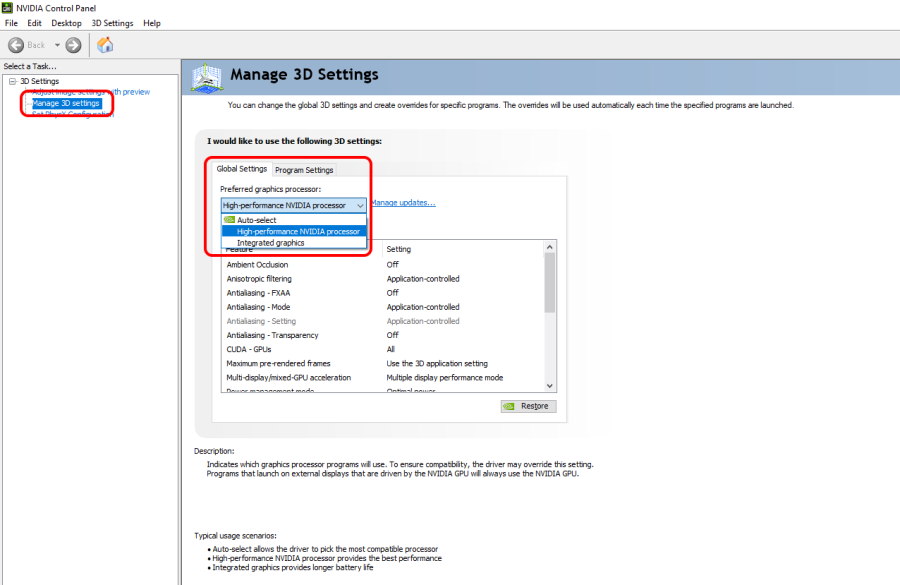

  2. Global inclusion of not integrated graphic card



Inclusion of not integrated graphic card, only for InstalSystem 5 usage

This way turns off the auto-managing mechanism of the group installed graphic cards, could influence the set in Windows system energy management schemes and reduce the work time in laptop’s batteries.
NOTE: This way must be set every time for installed program version and for each new installed InstalSystem 5 version.

• Example of changes in nVidia graphic card driver.

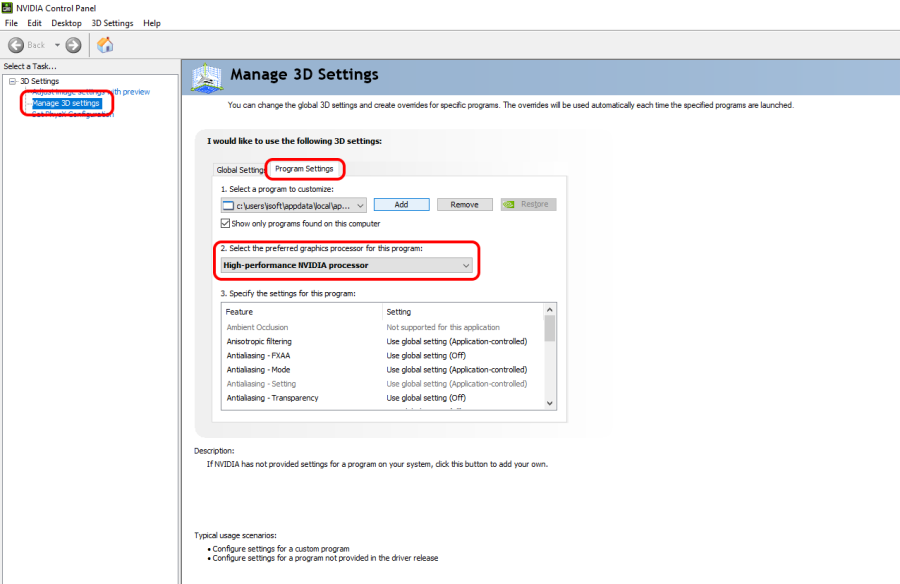

  3. Turn on the not integrated graphic card only for the InstalSystem 5 version usage



Computers equipted only with integrated graphic card

Way out for suspition/turning off application

1. Start the program, choose tab Файл placed in the top left corner, then please choose the Настройки.
2. On the screened setting window, please choose Изглед на екрана,

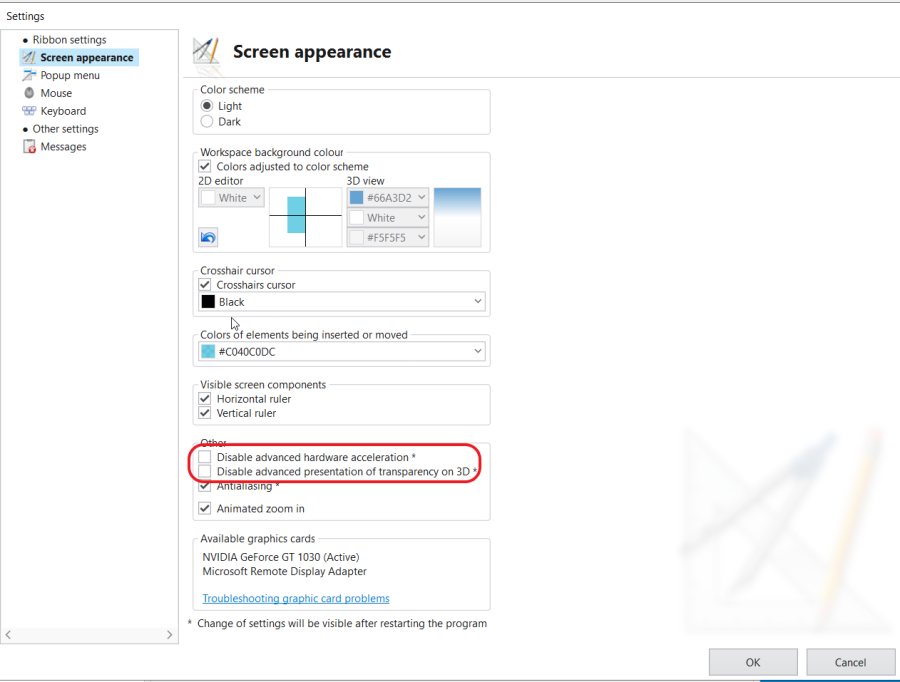

3. Choose Забрани хардуерно ускорение and/or Деактивирай разширено представяне на прозрачност в3D and confirm your changes by pressing OK.



   4. Turn on Забрани хардуерно ускорение and/or Деактивирай разширено представяне на прозрачност в3D



Way out for black screen in 3D изглед or 2D редактор - Turning off the option Antialiasing

1. Start the program, choose tab Файл placed in the top left corner, then please choose the Настройки.
2. On the screened setting window, please choose Изглед на екрана,

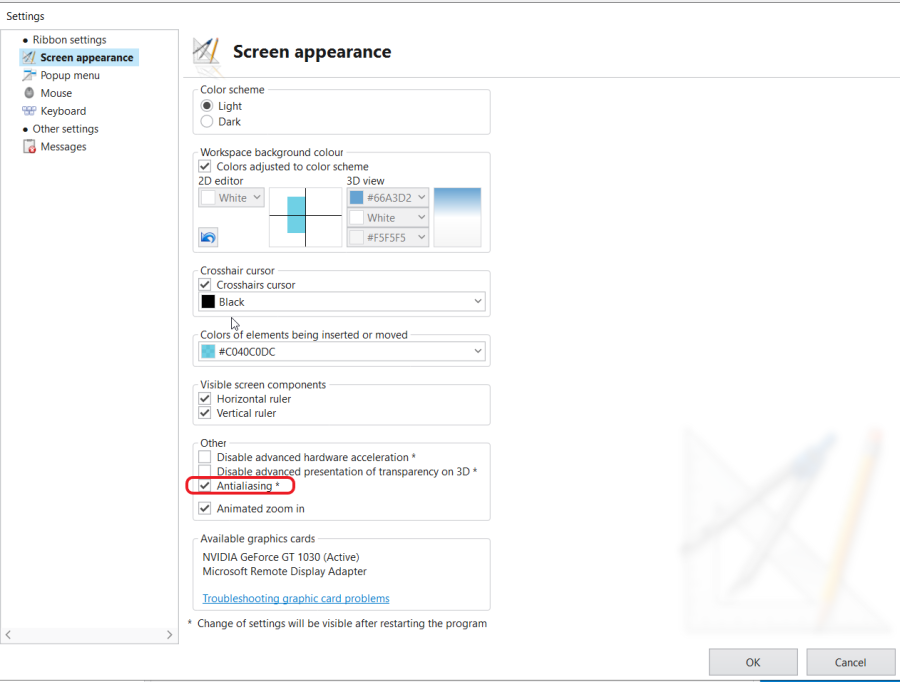

3. Turn off the option Antialiasing за 2D изглед, Antialiasing за 3D изглед and confirm the change, by clicking OK.



   5. Turning off Antialiasing



Way out for black screen in 3D изглед or 2D редактор - Window work mode

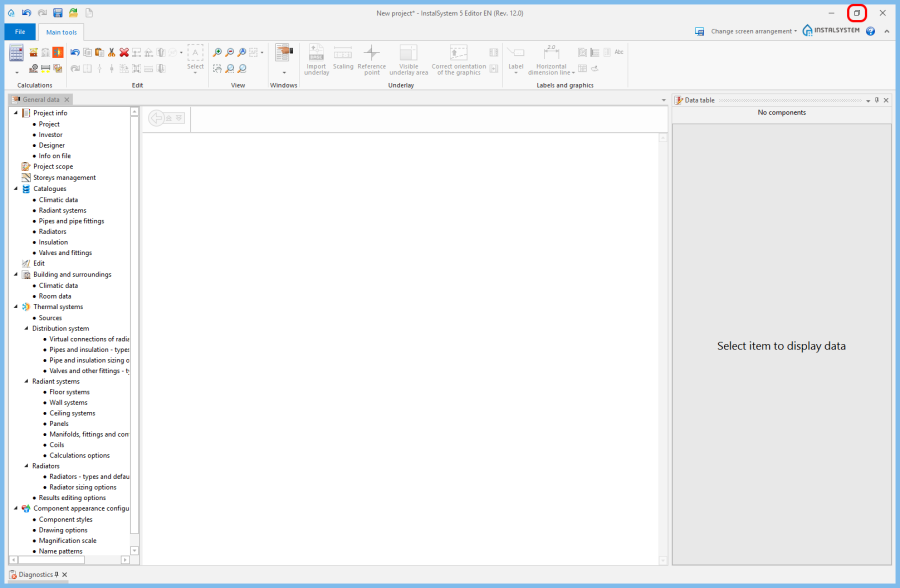

1. Turning on the window work mode in InstalSystem 5 Editor.



   6. Work in window work mode
