Колектор и принадлежности
Направо към навигацията
Направо към търсенето
| Продукт | InstalSystem 5 |
| Вид статия | FUNCTIONALITY |
| Актуално съдържание за версия | IS 5.0 Beta 26 |
Description
The program offers the possibility of automatic sizing of manifold accessories defined as Вид на колекторен комплект. It also enables selecting the proper size of manifold cabinet depending on manifold size and accessories. Selection of control components ensures control over matching actuators installed on manifold valves.
In unusual cases manual selection of manifold accessories and cabinet is possible.
Location in the program
Components associated with the use of a manifold are accessible on the Главни ленти с инструменти bar when the following editing scopes are enabled: Лъчисти подове, стени, Лъчисти тавани, Конвекция. These include:
- Колектори
- Етикет
- Таблица на колектор

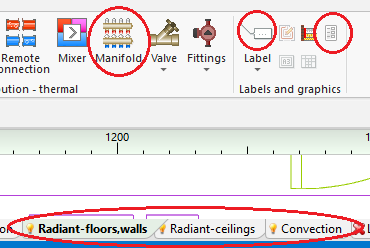

1. Available components on the toolbar
Examples of use
Data enabling automatic sizing of manifold and accessories
Manual selection of manifold accessories
- From those available select the Вид на колекторен комплект with connection points arranged as expected.
- Change Вид на колекторен комплект to Друг.
- Select the remaining manifold accessories as needed.
- When accessories are selected manually, the automatically selected cabinet may not fulfil the needs. Cabinet size must be specified manually!
Manifold label and table
ADDITIONAL INFORMATION
Колекторни бордове
- For each manifold used in the project, in the Резултати window there is a sheet with complete set of calculation results and list of accessories.
